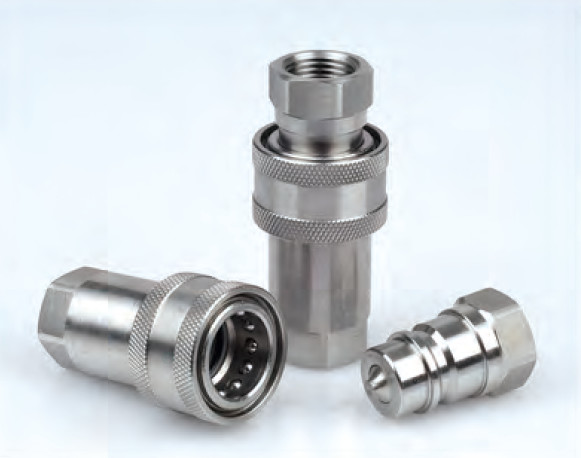

3/8'' 316 Stainless Steel Quick Connect Couplings

Brand Name : carterberg

Model Number : CB-10

Certification : IATF16949

Place of Origin : Shanghai, China

MOQ : Negotiation

Price : Negotiation

Payment Terms : L/C, D/A, D/P, T/T, Western Union

Supply Ability : 5000~20000 pc/month

Delivery Time : 7-20 work days

Packaging Details : carton

Material : zinc-plated steel, stainless steel

Rated Pressure : 20.7 Mpa

Connection : Female/Male

Rated Flow : 190 L/min

Type : ISO 7241A

Size : 1/4''-1''

Valves : Ball / Poppet

Interchange : PARKER 6600 Series/HANSEN HA 15000 Series

Contact Now

316 stainless steel Close Type Series Hydraulic Quick couplings

As an honest seller, we always use superior raw material, advanced equipments, skilled technicians and strict quality control to ensure our products to be finished in high quality and stable feature.

CB-10 Series Quick Couplings are general purpose hydraulic and fluid transfer coupling that conforms to the dimensional requirements of ISO 7241 A Series. Body sizes are 1/4", 3/8", 1/2", 3/4" and 1". use on construction equipment, forestry equipment, agricultural machinery, oil tools, Oil equipment steel mill machinery, and other demanding hydraulic applications.

Standard Materials

  • stainless steel
  • Seals: NBR, Viton, EPDM

Features

  1. Ball lock
  2. Manual connect, disconnect
  3. Poppet valving
  4. Slim profile
  5. Zinc plated steel construction
  6. NPTF and BSPP end connections
  7. Compatible with PARKER 6600 Series, FASTER ANV Series, AEROQUIP 5600 Series and HANSEN HA 15000 Series.

3/8'' 316 Stainless Steel Quick Connect Couplings

Body Size PARTNO. Thread A B Across Flats
1/4" CB-S2L-10FN/CB-S2M-10FN 1/4-18 1.89 0.98 0.75
1/4" CB-S2L-10FG/CB-S2M-10FG 1/4-19 1.89 0.98 0.75
3/8" CB-S3L-10FN/CB-S3M-10FN 3/8-18 2.21 1.18 0.91
3/8" CB-S3L-10FG/CB-S3M-10FG 3/8-19 2.21 1.18 0.91
1/2" CB-S4L-10FN/CB-S4M-10FN 1/2-14 2.64 1.49 1.06
1/2" CB-S4L-10FG/CB-S4M-10FG 1/2-14 2.64 1.49 1.06
3/4" CB-S6L-10FN/CB-S6M-10FN 3/4-14 3.25 1.88 1.38
3/4" CB-S6L-10FG/CB-S6M-10FG 3/4-14 3.25 1.88 1.38
1" CB-S8L-10FN/CB-S8M-10FN 1-11 3.86 2.08 1.62
1" CB-S8L-10FG/CB-S8M-10FG 1-11 3.86 2.08 1.62

3/8'' 316 Stainless Steel Quick Connect Couplings

Body Size PARTNO. Thread C D E HEX
1/4" CB-P2L-10FN/ CB-P2M-10FN 1/4-18 1.41 0.86 0.80 0.75
1/4" CB-P2L-10FG/ CB-P2M-10FG 1/4-19 1.41 0.86 0.80 0.75
3/8" CB-P3L-10FN/ CB-P3M-10FN 3/8-18 1.63 1.04 0.79 0.91
3/8" CB-P3L-10FG/ CB-P3M-10FG 3/8-19 1.63 1.04 0.79 0.91
1/2" CB-P4L-10FN/ CB-P4M-10FN 1/2-14 1.92 1.22 0.92 1.06
1/2" CB-P4L-10FG/ CB-P4M-10FG 1/2-14 1.92 1.22 0.92 1.06
3/4" CB-P6L-10FN/ CB-P6M-10FN 3/4-14 2.42 1.58 1.09 1.38
3/4" CB-P6L-10FG/ CB-P6M-10FG 3/4-14 2.42 1.58 1.09 1.38
1" CB-P8L-10FN/ CB-P8M-10FN 1-11 2.83 1.85 1.19 1.62
1" CB-P8L-10FG/ CB-P8M-10FG 1-11 2.83 1.85 1.19 1.62

Our Services:

1. Customized design, OEM is available.
2. In-time & professional after sales service.
3. Low MOQ, standard package, fast delivery.
4. Special discount and protection are provided to our distributors.
5. As an honest seller, we always use superior raw material, advanced equipments, skilled technicians and strict quality control to ensure our products to be finished in high quality and stable feature.
