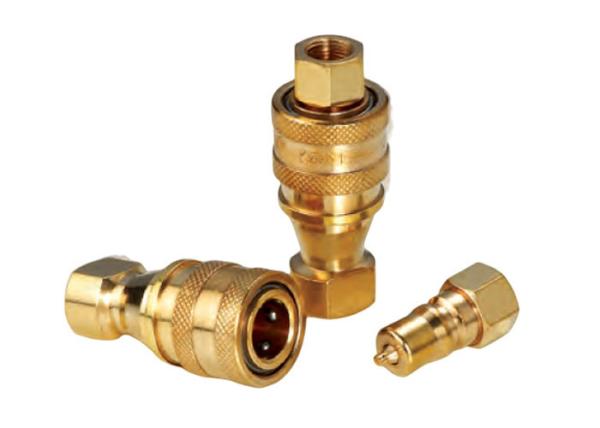

KZD Medium-pressure High Performance Pneumatic And Hydraulic Quick Coupling(Brass)
KZD Medium-pressure High Performance Pneumatic And Hydraulic Quick Coupling(Brass)
Applications: KZD couplings, are used across the spectrum of hydraulic applications. These Double Shut-Off couplings can be found anywhere that fluid transfer lines need to be connected and disconnected for operation or maintenance of equipment, and a loss of fluid is undesirable. Primarily used with hydraulic fluid. KZD couplings are also used with chemicals, water, steam, and some gases.
KZD Series couplings feature:
1.Poppet valves available to prevent uncoupled leakage.
2.Poppet valves open automatially when coupled within rated working pressure, to keep the flow expeditely.
3.Dependable ball-locking mechanism holds the mating halves together.
4.Socket and plug are precision machined from solid bar stock.
5.KZD series conforms to the standard ISO7241-B.
6.Compatible with PARKER 60 Series, FASTER HNV Series, AEROQUIP FD45 Series and HANSEN HK Series.

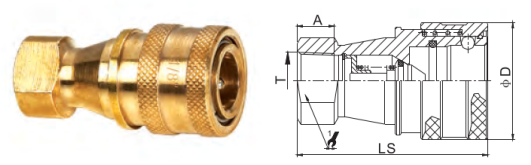

| PARTNO. | LS | Φ D | HS | A | T |
| CB-S1B-KZD | 48 | 24 | 14 | 8 | G1/8 |
| CB-S2B-KZD | 58 | 27 | 19 | 12.5 | ZG1/4 |
| CB-S3B-KZD | 65 | 35 | 22 | 13 | ZG3/8 |
| CB-S4B-KZD | 72.5 | 45 | 29 | 14 | ZG1/2 |
| CB-S6B-KZD | 88 | 54 | 36 | 17 | ZG3/4 |
| CB-S8B-KZD | 102 | 64.5 | 41 | 23 | ZG1 |
| CB-S10B-KZD | 115 | 69 | 54 | 27 | ZG1-1/4 |
| CB-S12B-KZD | 124 | 79 | 60 | 27 | ZG1-1/2 |
| CB-S16B-KZD | 132 | 102 | 77 | 30 | ZG2 |

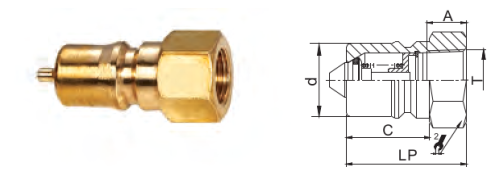

| PARTNO. | LP | d | C | HP | A | T |
| CB-P1B-KZD | 29 | 10.8 | 19 | 14 | 8 | G1/8 |
| CB-P2B-KZD | 36 | 14.2 | 22.5 | 17 | 12.5 | ZG1/4 |
| CB-P3B-KZD | 40 | 19 | 25 | 22 | 13 | ZG3/8 |
| CB-P4B-KZD | 44 | 23.5 | 28 | 27 | 14 | ZG1/2 |
| CB-P6B-KZD | 52 | 31.4 | 36 | 36 | 17 | ZG3/4 |
| CB-P8B-KZD | 62 | 37.8 | 40 | 41 | 23 | ZG1 |
| CB-P10B-KZD | 70 | 45 | 45 | 52 | 27 | ZG1-1/4 |
| CB-P12B-KZD | 75 | 50 | 49 | 60 | 27 | ZG1-1/2 |
| CB-P16B-KZD | 80 | 70 | 52 | 77 | 30 | ZG2 |
