CB-SPS-3FN-WA56000 Thread-to-Connect Hydraulic Coupler | Carterberg

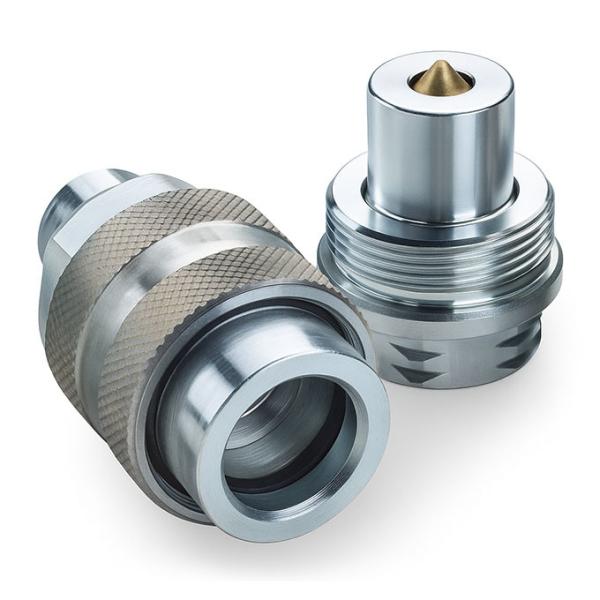

Carterberg’s CB-SPS-3FN-WA56000 is a high-pressure hydraulic quick coupler with a rugged threaded connection, built specifically for compact equipment and portable hydraulic systems. Designed to withstand up to 10,000 PSI operating pressure, this coupling excels in mission-critical scenarios such as hydraulic jacks and rescue tools, where reliability and pressure retention are non-negotiable.
The WA56000 is engineered to deliver zero-leak performance with minimal air inclusion. A screw-to-connect interface combined with poppet-style valves ensures a secure, double-shut-off seal during disconnection. The compact structure and robust surface treatment make it particularly well-suited for space-constrained or mobile hydraulic setups.
Key Features
• Rated up to 10,000 PSI for demanding high-pressure applications
• Thread-to-connect system enables secure connections even under load
• Poppet valve design provides efficient shut-off and prevents fluid loss
• Zinc trivalent plated carbon steel ensures corrosion resistance
• Minimal air inclusion during connection improves hydraulic performance
• Compact design ideal for mobile jacks, lifting systems, and emergency tools
Technical Specifications
| Parameter | Value |
| Coupling Type | Thread-to-Connect, Poppet Valve |
| Body Size (inches) | ¼", ⅜" |
| Max Operating Pressure | 10,000 PSI (700 bar) |
| Min. Burst Pressure | 40,000 PSI (2,800 bar) |
| Rated Flow | 11 L/min (¼") / 16 L/min (⅜") |
| Air Inclusion | 1.1 ml (¼") / 1.9 ml (⅜") |
| Material | Zinc-plated carbon steel |
| Seal Material | NBR |
| Connection Type | Manual threaded |
| Temperature Range | -20°C to +120°C |
Dimensional Overview
Female (Socket)
| Body Size | PARTNO. | Thread | A | B | HEX |
| 1/4" | CB-S2S-3MN-C | 1/4 NPT | 60 | 28,5 | 22 |
| 3/8" | CB-S3S-3MN-C | 3/8 NPT | 70 | 35 | 27 |
Male (Plug)
| Body Size | PARTNO. | Thread | C | D | HEX |
| 1/4" | CB-P2S-3MN-C | 1/4 NPT | 35 | 15,9 | 19 |
| 3/8" | CB-P3S-3MN-C | 3/8 NPT | 42 | 19 | 23 |
Applications
• Hydraulic lifting equipment
• Mobile jacking systems
• Emergency rescue tools
• Compact or mobile high-pressure hydraulics
• Maintenance units for industrial machinery
Design and Operation
The CB-SPS-3FN-WA56000 uses a screw-to-connect system to maintain seal integrity even in environments with high vibration or residual pressure. The valve bodies incorporate poppet-style sealing to ensure no leakage during disconnection. Its hex design allows for easy tool-assisted installation in tight assemblies.
|
|
