CB-205 ISO5675 Hydraulic Quick Coupling – Double-Acting Sleeve for Construction & Forestry

Name: CB205 ISO5675 Hydraulic Quick Coupling DoubleActing Sleeve for Construction amp Forestry
Brand: carterberg
Price: 1 USD

Brand Name : carterberg

Model Number : CB-205

Certification : IATF16949

Place of Origin : China

MOQ : Negotiation

Price : Negotiation

Payment Terms : L/C,D/A,D/P,T/T,Western Union

Supply Ability : 5000~20000 pc/month

Delivery Time : 7-20 work days

Packaging Details : carton

Type : ISO 7241A

Material : zinc-plated steel, stainless steel

Size : 1/4''-1''

Rated Pressure : up 2900 PSI（20 MPa）

Sealant materials : NBR (standard), Viton, EPDM (optional)

Connection : plug and socket

Valves : Ball / Poppet

Interchange : Compatible with Parker 6600, Faster ANV, Stucchi A series, etc.

Contact Now

CB-205 ISO5675 Hydraulic Quick Coupling – Double-Acting Sleeve for Construction & Forestry

The CB-205 Series hydraulic quick couplings are engineered for heavy-duty applications in construction, forestry, and hydraulic machinery. Featuring a double-acting sleeve for one-handed push-to-connect operation, they ensure efficient coupling even in clamp or bulkhead mounts. Equipped with poppet valves to prevent uncoupled leakage, these couplings maintain automatic flow within rated pressure for uninterrupted performance. Critical hardened components enhance durability, while ISO5675 compliance guarantees reliability. Compatible with PARKER 4250 and FASTER CPV-CNV Series, they offer seamless integration into existing systems. Ideal for demanding industrial environments, these couplings prioritize safety, ease of use, and robust performance.

Technical Specifications

BODY SIZE	Rated Pressure (PSI)	Rated Flow (GPM)	Temperature range(std seals)	Standard seal material
1/2"	3000	12	-20℃~+80℃	NBR

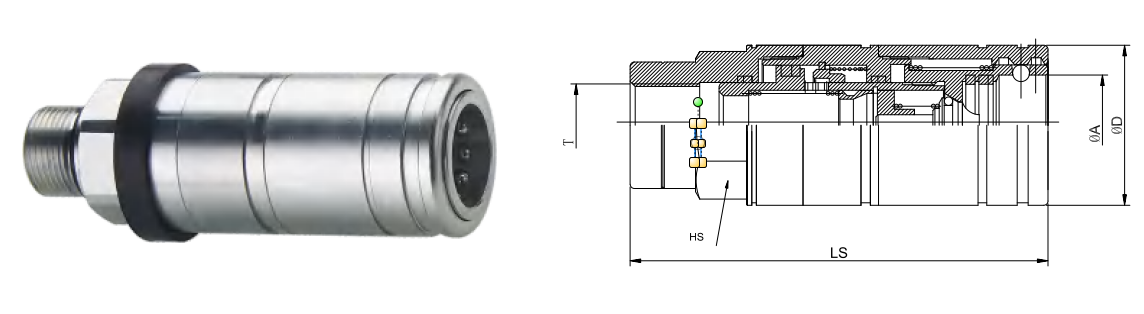

Dimensional Overview

CB-205 ISO5675 Hydraulic Quick Coupling – Double-Acting Sleeve for Construction & Forestry

Body Size	PARTNO.	LS	Φ D	HS	A	T
1/2"	CB-205	111	38	32	23.8	BSP1/2 NP T1/2

CB-205 ISO5675 Hydraulic Quick Coupling – Double-Acting Sleeve for Construction & Forestry Images
